51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: NOTES ON INSTALLING WINDOW GUIDES are the basis of this repair instruction.

Necessary preliminary tasks

Remove FRONT DOOR TRIM PANEL

Pull window cavity cover strip (1) in direction of arrow off front door.

Fig 1: Pulling Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moulded section (1) and retaining elements (2) of window cavity cover strip (3) must not be damaged.

Moulded section (1) must be correctly fed into door.

Moisten window cavity cover strip (3) prior to fitting with APPROVED ANTI-FRICTION AGENT .

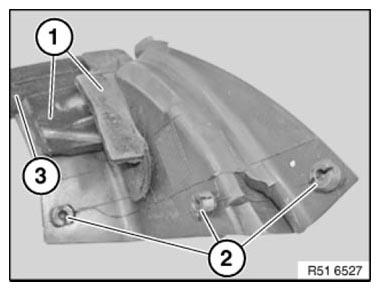

Fig 2: Identifying Moulded Section And Retaining Elements Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure window cavity cover strip (1) is installed in correct position on door (2) and door window glass (3).

Fig 3: Identifying Window Cavity Cover Strip On Door And Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
