51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove MIRROR ON FRONT DOOR
IMPORTANT:
Observe PROCEDURE for using special tool 00 9 324.
NOTES ON INSTALLING WINDOW GUIDES are the basis of this repair instruction.
IMPORTANT:
Risk of damage!
If reusing the existing window cavity cover strip (1), make sure it is not bent.

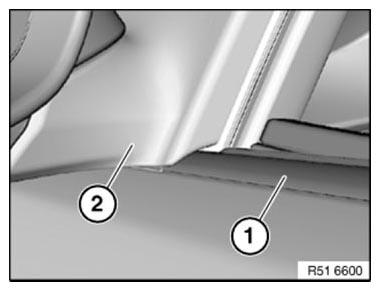

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).
Installation:
Coat window cavity cover strip (1) prior to fitting with APPROVED ANTI-FRICTION AGENT and fit with precision under exterior mirror (2).
