51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

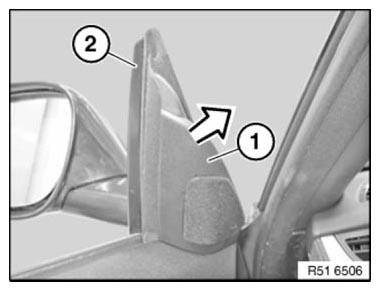

Remove corner trim (2) in upward direction from triangular mirror section (1).

Fig 1: Removing Corner Trim From Triangular Mirror Section

Courtesy of BMW OF NORTH AMERICA, INC.

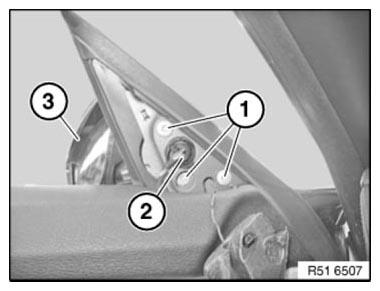

Release screws (1).

Tightening torque 51 16 1AZ .

Unlock and disconnect plug (2).

Remove mirror (3).

Fig 2: Identifying Mirror, Plug With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Tightening torque 51 16 1AZ .

Installation:

Check function.
