51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT DOOR TRIM PANEL

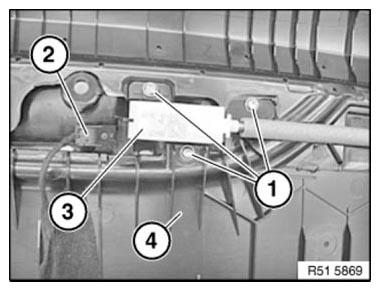

Release screws (1).

Unlock and disconnect plug (2).

Unhook Bowden cable (3) from door trim panel (4).

Fig 1: Identifying Bowden Cable, Door Trim Panel With Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

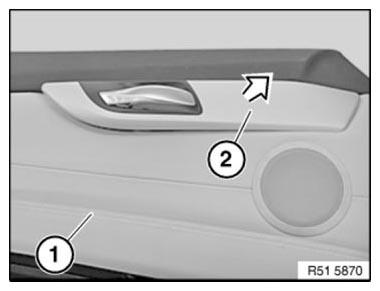

Snap trim with inner door opener (2) out of door trim panel (1).

Fig 2: Removing Trim With Inner Door Opener Out Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
