72 11 092 Removing and installing or replacing rear left or right seat belts

Necessary preliminary tasks:

Removing left or right automatic reel:

Release screw (1) on inertia reel unit (2).

Tightening torque 72 11 21AZ .

Remove inertia reel unit (2).

Installation:

Automatic reel is coded against incorrect installation.

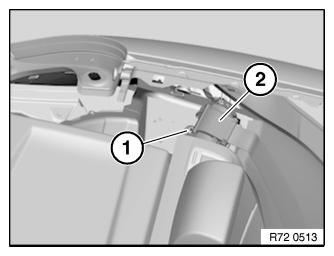

Fig 1: Identifying Inertia Reel Unit And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rear seat on left and right towards top.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

Pull rear seat forward until the end fittings are accessible.

Fig 2: Feeding Seat Belt Buckles Into Openings In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torques 72 11 22AZ .

Remove seat belt (1).

Installation:

Pin (3) determines the installation position and prevents the anchor fitting from turning.

Fig 3: Identifying Seat Belt, Screw And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out end fitting from rear seat.

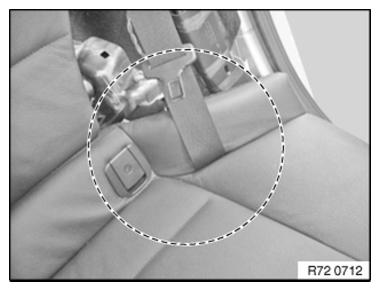

Fig 4: Identifying Rear Seat End Fitting Area

Courtesy of BMW OF NORTH AMERICA, INC.
