61 31 137 Removing and installing/renewing USB interface connecting socket

Necessary preliminary tasks:

• Remove GLOVE BOX WITH HOUSING

Release retaining clamps (1).

Push USB interface connecting socket (2) to the front from glove box (3).

Installation note:

Retaining clips (1) must not be damaged.

Make sure USB interface connecting socket (2) is correctly seated.

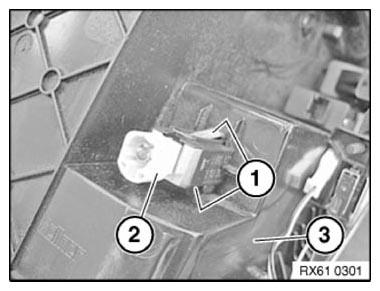

Fig 1: USB Interface Connecting Socket And Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.
