51 16 366 Removing and installing/replacing right glove box with housing

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT
Remove SIDE PANEL ON DASHBOARD on right
Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT

Release screws (1).

Tightening torque: 51 16 2AZ .

Installation note:

Ensure the glove box is correctly seat on the holder (2).

Fig 1: Glove Box On Holder

G10097035

Courtesy of BMW OF NORTH AMERICA, INC.

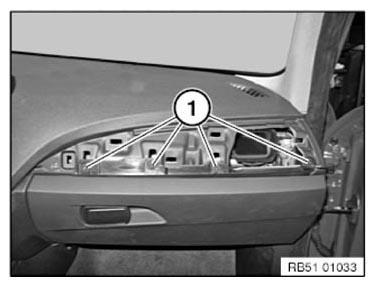

Release screws (1).

Tightening torque: 51 16 2AZ .

Fig 2: Screws

G10142324

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 51 16 2AZ

Fig 3: Screw

G10097036

Courtesy of BMW OF NORTH AMERICA, INC.

Pull glove box (1) out slightly and unlock and disconnect depending on the plug connection versions (2).

Remove glove box (1).

Fig 4: Glove Box And Plug Connection

G10097038

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

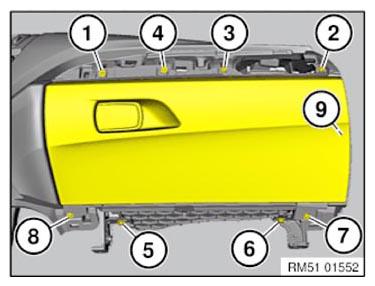

To avoid straining the glove box and causing annoying noises, screw it in place in the specified order (1 to 9).

This also helps achieve optimal gap spacing.

Fig 5: Glove Box Screws Tightening/Loosening Sequence

G10142327

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, remount the following parts depending on the version:

Depending on version:

USB INTERFACE CONNECTING SOCKET /blind plate
HOTEL POSITION SWITCH /blind plate
