11 12 000 Removing and installing/sealing cylinder head cover (N20, N26)

Necessary preliminary tasks:

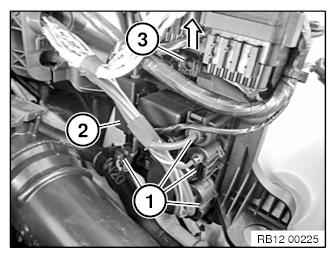

Unclip oxygen sensor connector (1) from holder and disconnect plug connection.

Fig 1: Oxygen Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

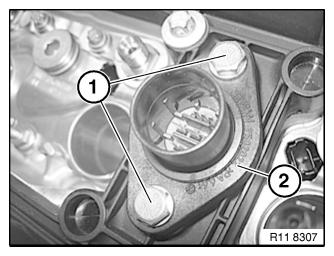

Release screws (1).

Remove flange (2).

Fig 2: Flange And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only N20 engine

Disconnect plug connection (1) from the electro-pneumatic pressure converter (3).

Remove vacuum line (OUT).

Release screws (2) and place pressure converter (3) to one side.

Fig 3: Electro-Pneumatic Pressure Converter And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

Release nut beneath it and set positive battery cable aside.

Tightening torque: 12 42 7AZ .

Fig 4: Releasing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Cylinder Head Cover Bolts Tightening/Loosening Sequence (N20, N26)

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws of cylinder head cover from outside inwards in 1/2 turns.

Remove cylinder head cover.

Replace all gaskets.

Clean sealing surfaces at the contact surfaces of the cylinder head and the spark plug channels.

Installation note:

Pay attention when placing cylinder head cover on centering pin (1)

Fig 6: Centering Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Cylinder Head Cover Bolts Tightening/Loosening Sequence (N20, N26)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit cylinder head cover.

Insert screws of the cylinder head cover by 1/2 turn.

Tighten the cylinder head cover screws in sequence (1 to 20).

Tightening torque: 11 12 4AZ .

NOTE: Assemble engine.
Check engine for leak tightness.
