12 51 210 Replacing wiring harness section for ignition and injectors (N20, N26)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove acoustic cover. See REMOVING ACOUSTIC COVER (N20) or REMOVING ACOUSTIC COVER (N26) .
N20 only:
Remove PRESSURE CONVERTER FOR EXHAUST TURBOCHARGER .

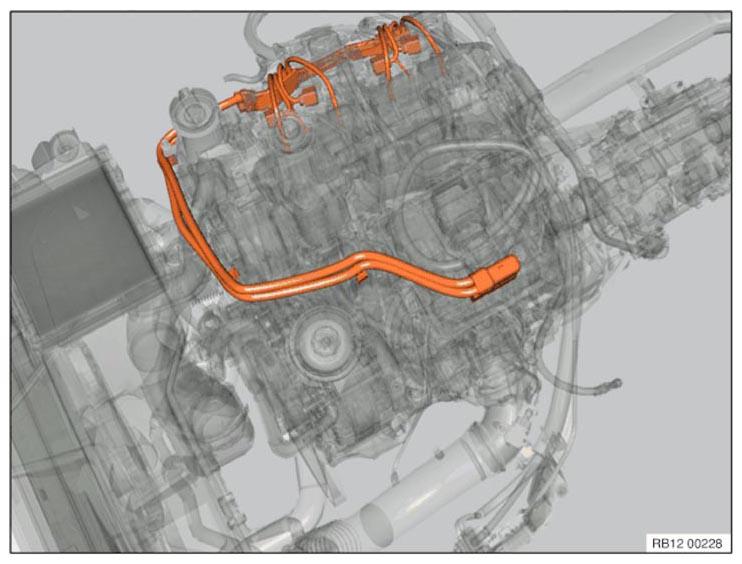

Fig 1: Overview Of Wiring Harness Section For Ignition And Injectors

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of wiring harness section for ignition and injectors.

Unlock and remove connector (1) from control unit.

Fig 2: Identifying Control Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release wiring harness from clamps (1).

Fig 3: Identifying Wiring Harness Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: This procedure is applicable to all cylinders.

Unlock and disconnect connectors (1) at injectors.

Slacken nut (2) and remove ground cable (3).

Tightening torque 12 52 2AZ .

Fig 4: Identifying Connectors, Nut, And Ground Cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: This procedure is applicable to all cylinders.
Release connector catch (1) at ignition coil (2) and pull off connector.

Fig 5: Pulling Out Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining lug (1) in direction of arrow.

Pull cable channel (2) from cylinder head cover.

Pull out and remove wiring harness section for injectors and ignition coils.

Fig 6: Pulling Cable Channel From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Clear diagnostic fault entries from fault memory.
