51 47 152 Removing and installing/replacing left luggage compartment wheel arch trim

Necessary preliminary tasks:

Removal:

Equipment specification with lashing eye:

Lever out cover (1) and release screw underneath.

Remove lashing eye (2).

Fig 1: Cover And Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove operating lever (2) downwards.

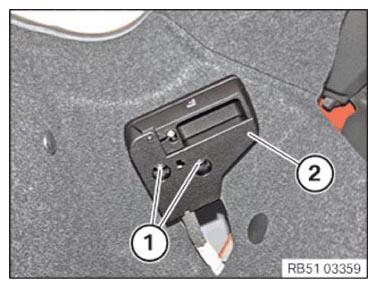

Fig 2: Operating Lever And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove emergency operation (1) and detach cable.

Release clamps (2).

Feed out wheel arch panel (3).

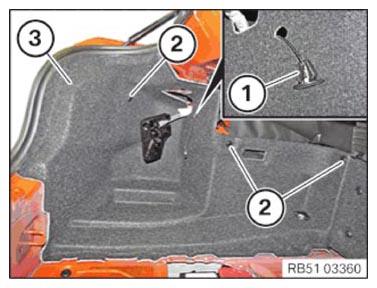

Fig 3: Wheel Arch Panel And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Thread in wheel arch panel (3).

Mount clips (2).

NOTE: Replace faulty clips (2).

Attach cable and install emergency operation (1).

Fig 4: Wheel Arch Panel And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Install operating lever (2).

Tighten down screws (1).

Fig 5: Operating Lever And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with lashing eye:

Install lashing eye (2) and tighten down bolt.

Tightening torque: 51 47 1AZ .

Mount cover (1).

Fig 6: Cover And Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
