51 47 165 Remove and install/replace top luggage compartment trim panel

Removal:

Release expanding rivets (1) and remove luggage compartment trim panel (2) towards bottom.

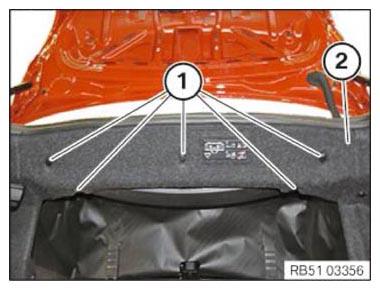

Fig 1: Luggage Compartment Trim Panel And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install luggage compartment trim panel (2) and mount the expanding rivet (1).

Fig 2: Luggage Compartment Trim Panel And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.
