63 21 030 Removing and installing/replacing socket housing for left rear light

WARNING: FOLLOW INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Release all latch mechanisms.

Remove the socket housing (1) from the rear light (2).

Installation note:

The socket housing seal must not be damaged or missing.

Make sure socket housing (1) is correctly locked.

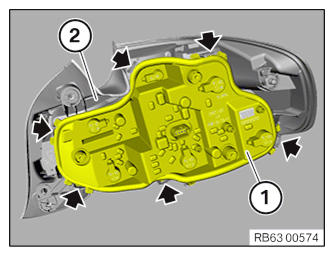

Fig 1: Locating Socket Housing From Rear Light
G10143785Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Installation note:

Gasket (1) on socket housing (2) must not be damaged or missing.

Carefully press bulb (3-6) into socket housing (2), turn in direction of arrow and remove from socket housing (2).

  1. (3) Bulb, turn indicator.
  2. (4) Bulbs, brake light.
  3. (5) Bulb, reversing light.
  4. (6) Bulb, rear fog light.

Note BULB TYPE .

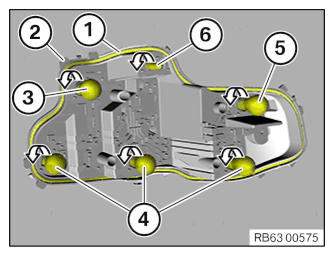

Fig 2: Pressing Bulb Into Socket Housing
G10143786Courtesy of BMW OF NORTH AMERICA, INC.
