65 12 315 Removing and installing (replacing) HU-H)

IMPORTANT: Risk of damage!

There is a hard disk installed in the headunit.

Carry out mechanical work on the headunit and adjacent components with care.

Avoid subjecting the headunit to vibration/shocks.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Removal:

Release screws (1).

Pull the HU-H (2) out forward.

Fig 1: Identifying HU-H Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect all connectors (1) in marked area.

Remove HU-H (2).

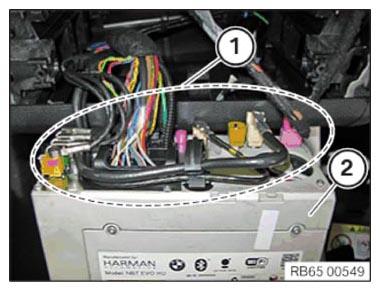

Fig 2: Identifying HU-H Connectors In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position HU-H (2).

Connect and lock all the connectors (1) in the marked area.

Fig 3: Identifying HU-H Connectors In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Slide the HU-H (2) toward the back into the instrument panel (3).

Tighten down screws (1).

NOTE: Make sure the HU-H (2) is correctly seated on the retaining lugs at the marked points.

Fig 4: Locating HU-H Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Only for US models with satellite radio:

When replacing the headunit, additional work is required!

Replacement:

Load service history:
