65 77 720 Removing and installing (replacing) left B-pillar sensor

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

WARNING: NOTE AIRBAG SAFETY REGULATIONS !
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

REMOVAL:

Unlock and disconnect the connector (1).

Release screw (2).

Remove sensor (3).

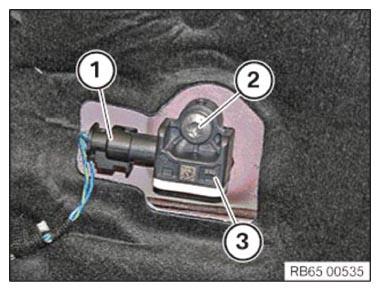

Fig 1: Identifying Left B-Pillar Sensor Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Position sensor (3) correctly.

Tighten screw (2).

Tightening torque 65 77 3AZ .

Attach and lock connector (1).

Fig 2: Identifying Left B-Pillar Sensor Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
