65 13 090 Removing and installing/replacing speaker (mid-range speaker, rear side trim panel)

Necessary preliminary tasks:

Removal:

Unscrew nuts (1).

Remove speaker (2) from side trim panel (3).

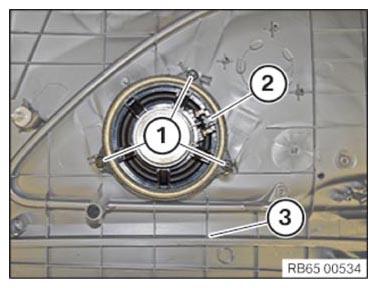

Fig 1: Identifying Speaker, Side Trim Panel And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position speaker (2) correctly on side trim panel (3).

Tighten down nuts (1).

Tightening torque 65 13 3AZ .

Fig 2: Identifying Speaker, Side Trim Panel And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
