51 46 025 Removing and installing/replacing cover on ornamental grille for air outlet

Necessary preliminary tasks:

Removal:

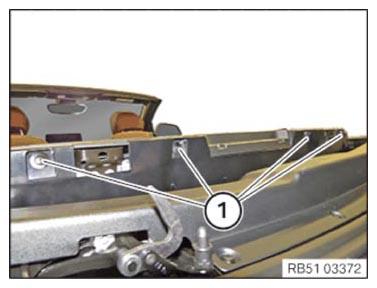

Remove expanding rivet (1).

Fig 1: Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

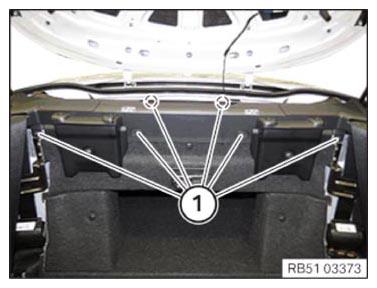

Release screws (1).

Fig 2: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

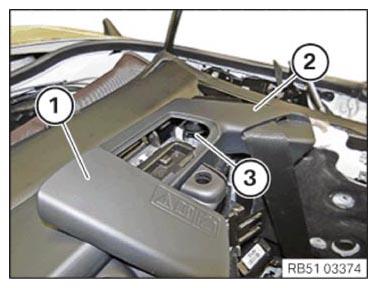

Lift out cover (1) on left and right.

Undo trim panel (2) from clips (3).

Fig 3: Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

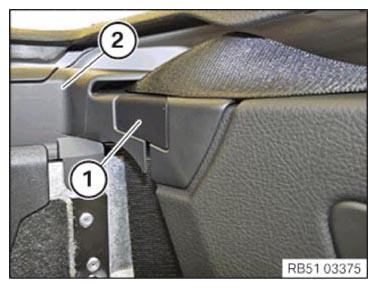

Remove fixture cover (1) left and right by moving it inwards.

Feed out trim panel (2) upwards and detach the seat belts while doing so.

Fig 4: Trim Panel And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trim panel (2) downwards and attach the seat belts while doing so.

Install cover (1) left and right.

Fig 5: Trim Panel And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in trim panel (2) into clips (3).

Install cover (1) left and right.

Fig 6: Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Fig 7: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mount expanding rivets (1).

Fig 8: Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
