65 13 080 Removing and installing/replacing speaker (tweeter in rear side trim panel)

Necessary preliminary tasks:

Removal:

Disconnect connector (1).

Remove resistor (2) from holder.

Unlock latches at marked points.

Remove speaker (3) from side trim panel.

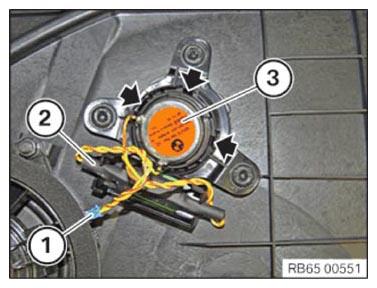

Fig 1: Locating Speaker Latches Marked Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position speaker (3) correctly on side trim panel and engage it.

Engage resistor (2) in holder.

Connect the plug (1).

NOTE: Speaker (3) is encoded against incorrect assembly.

Latch mechanisms must not be damaged or missing.

Fig 2: Locating Speaker Latches Marked Points

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
