13 71... Removing acoustic covers (N57 D30 O/T 1)

Necessary preliminary tasks:

Only if rear acoustic cover needs to removed:
Remove INTAKE SILENCER HOUSING .
Only if sound insulation on injector needs to be removed:
Partially detach rear acoustic cover.
Only if front acoustic cover needs to removed:
Remove FAN COWL .
Only if bottom acoustic cover needs to removed:
Remove front UNDERBODY PROTECTION .

Remove REINFORCEMENT PLATE .

Remove rear acoustic cover:

Release expanding rivets (1).

Release vacuum lines (2) from clamps and set to one side.

Remove rear acoustic cover (3).

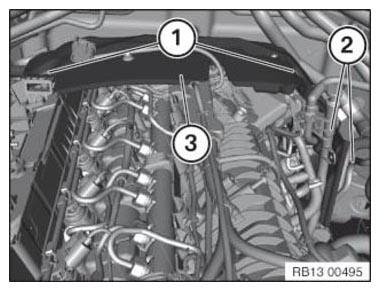

Fig 1: Identifying Rear Acoustic Cover, Expanding Rivets And Vacuum Lines

G11104239

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sound insulation on injectors:

Remove sound insulation (1) upwards.

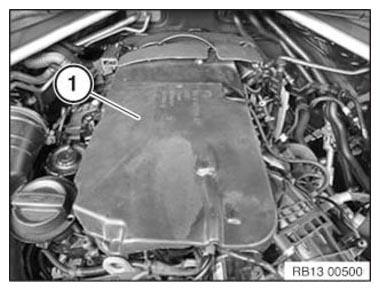

Fig 2: Identifying Sound Installation

G11104240

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front acoustic cover:

Release screws (1).

Remove acoustic cover at front.

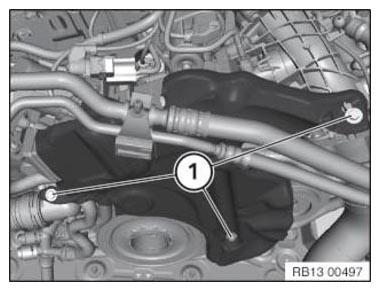

Fig 3: Identifying Screws

G11104241

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 12 52 1AZ .

Slacken nut (2).

Tightening torque 12 52 3AZ .

Lay cable to one side.

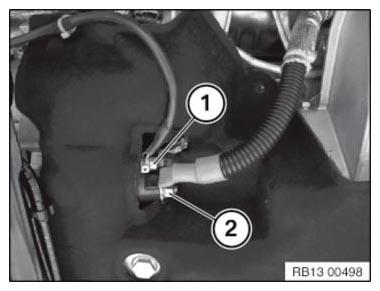

Fig 4: Identifying Nuts

G11103712

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets (1).

Remove bottom acoustic cover (2).

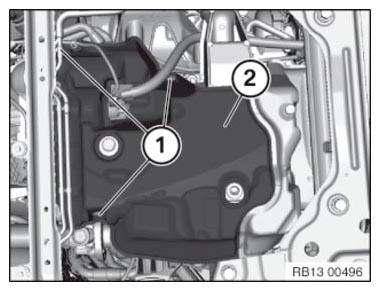

Fig 5: Identifying Acoustic Cover And Expanding Rivets

G11103713

Courtesy of BMW OF NORTH AMERICA, INC.
