51 16 160 Removing and installing/replacing center console cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove DECORATIVE TRIM ON CENTER CONSOLE
Remove CENTER CONSOLE OPERATING UNIT

Release screws (1).

Release cover (2) with special tool 00 9 325 from clamps (3).

Slightly raise the cover (2) and disconnect associated plug connection.

Feed out cover (2) to the top/rear.

Installation note:

Ensure correct cable routing.

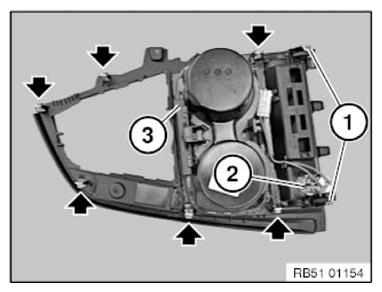

Fig 1: Center Console Cover, Clamps And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing make sure springs (1) are not disengaged.

Replace faulty clamps.

Replacement:

Modify charging socket (2)
Modify INTERIOR AERIAL (3)

Fig 2: Center Console Cover Clamps
Courtesy of BMW OF NORTH AMERICA, INC.
