51 31 245 Removing and installing/renewing gasket for rear window
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove COVER FOR REAR WINDOW FRAME AT TOP
- Remove TRIM FOR REAR LID
- Remove LEFT AND RIGHT TRIM FOR REAR LID

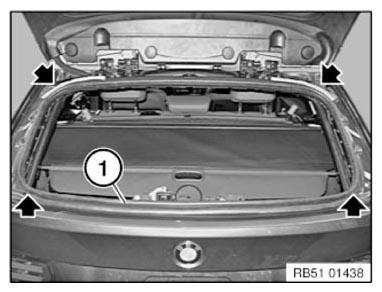

Pull off gasket (1) for rear window of tailgate.
Installation note:
Fit gasket (1) correctly on tailgate corners
