51 49 017 Removing and installing/replacing left or right rear window frame trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary work:

Remove TRIM PANEL FOR REAR WINDOW FRAME at top

NOTE: The operation is described on the left side; proceed in the same way for the right side.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Release trim panel (1) at clips (2) with special tool 00 9 325 .

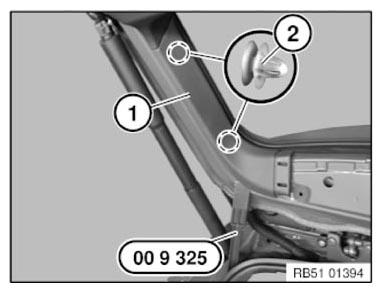

Fig 1: Releasing Trim Panel Clips With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide (1) and clips (2) of trim panel (3) must not be damaged or missing.

If necessary, replace clips (2).

Replacement

Modify clamps (2).

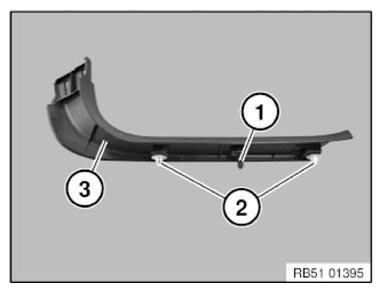

Fig 2: Trim Panel Guide And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
