11 34 715 Replace all valve springs (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Place cylinder head on special tool 11 9 001 .

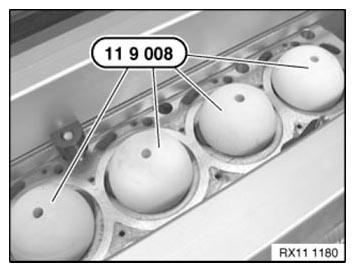

Position special tool 11 9 008 with straight surface on the cylinder head (see Fig 1).

NOTE: Procedure for all 4-, -6- and 8-cylinder diesel engines.

Fig 1: Positioning Special Tool (11 9 008) With Straight Surface On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 9 006 and lock with special tool 11 9 005 in direction of arrow.

Fig 2: Inserting Special Tool (11 9 006) And Lock With Special Tool (11 9 005)

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 11 9 005 in direction of arrow.

Rotate cylinder head, using special tool 11 9 000 , 180° into installation position.

Fig 3: Rotating Cylinder Head Using Special Tool (11 9 000)

Courtesy of BMW OF NORTH AMERICA, INC.

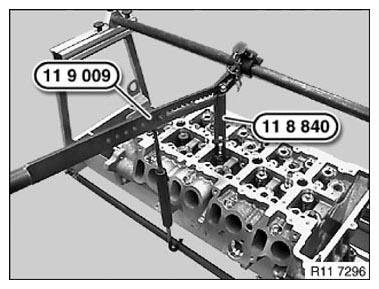

Align special tool 11 9 009 in direction of valve axis. Select corresponding groove with special tool 11 8 840 .

Press down valve spring on upper spring cup with special tool 11 9 009 .

Hook in with special tool 11 9 011 .

Fig 4: Pressing Down Valve Spring On Upper Spring Cup With Special Tool (11 9 009)

Courtesy of BMW OF NORTH AMERICA, INC.

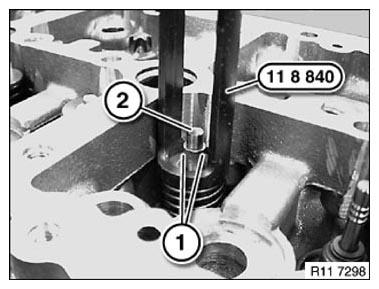

Use a magnet to remove valve keys (1) from valve (2).

Remove valve spring and spring cup.

Place down valve springs and valve keys on special tool 11 4 480 in an orderly manner.

Fig 5: Placing Down Valve Springs And Valve Keys On Special Tool (11 4 480)

Courtesy of BMW OF NORTH AMERICA, INC.

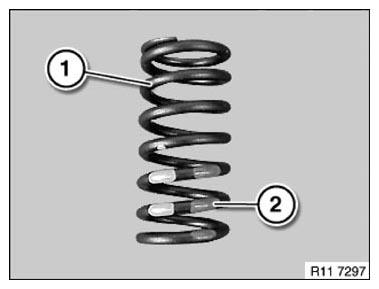

Check color code of valve spring (1).

The color (2) on the valve spring is important for allocation purposes.

Possible color sets:

Yellow - orange
Green - orange
Blue - orange

The installation position of the valve spring can be freely selected.

Fig 6: Color Code Of Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence:

Valve
Valve stem seal
Valve spring
Top spring cup
Valve keys

Fig 7: Valve Stem Seal, Valve Spring, Top Spring Cup And Valve Keys
Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace VALVE STEM SEALS .

Assemble engine.
