11 34 560 Replace all valve stem seals (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Remove all VALVE SPRINGS .

Tap open valve stem seal (1) with special tool 11 1 480 or with a size 13 or 14 hexagon bit.

Remove valve stem seal (1) with a twisting and pulling action.

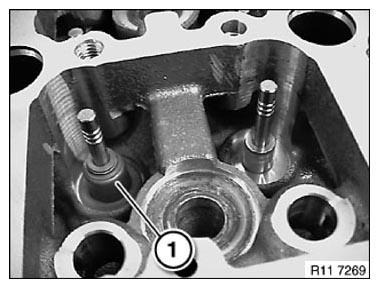

Fig 1: Valve Stem Seal

G09923911

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The contact surface (1) must be clean.

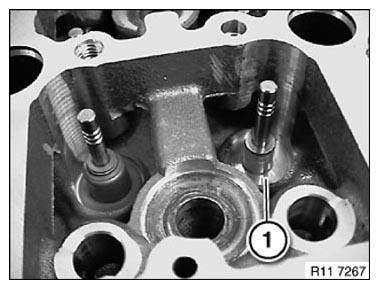

Fig 2: Valve Stem Seal And Contact Surface

G09923912

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before installing the valve stem seals, the protective grommet must be fitted on the valve stem Risk of damage! to the sealing lip!

Press on valve stem seal (1) to stop using special tool 11 6 380 in direction of arrow.

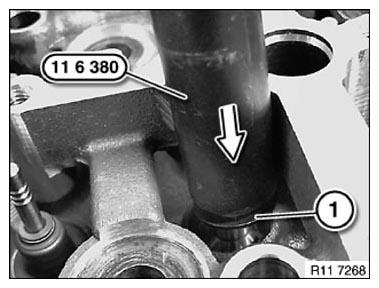

Fig 3: Pressing Valve Stem Seal To Stop Using Special Tool (11 6 380)

G09923913

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
