11 27 110 Removing and refitting/replacing balancer shafts (N20)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: The counterbalance shaft must be adjusted to the motor.

Necessary preliminary tasks:

Removing oil sump . See 11 13 000 REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (N20, N26) or 11 13 000 REMOVING AND FITTING, SEALING OR REPLACING THE OIL SUMP (N20 ALL-WHEEL DRIVE VEHICLE) .

Installation note:

Wet special tool 2 219 548 with oil to simplify dismantling and installation.

Secure crankshaft with special tool 2 219 548 via the dowel hole.

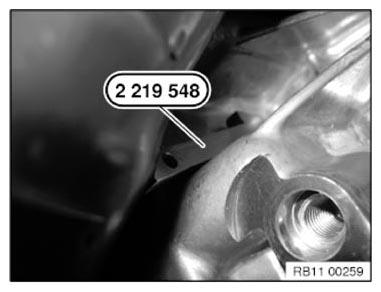

Fig 1: Special Tool (2 219 548)

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen sealing cap using a screwdriver.

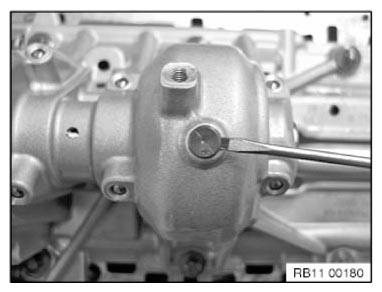

Fig 2: Loosening Sealing Cap Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Position counterbalance shaft with special tool 2 212 825 .

Secure special tool 2 212 825 on oil pump housing with screw (1).

If special tool 2 212 825 cannot be positioned, the TIMING must be readjusted.

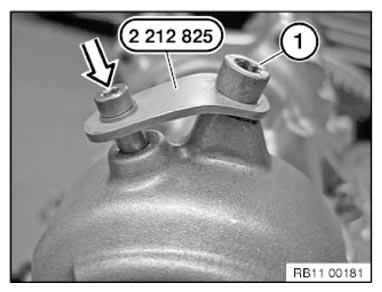

Fig 3: Securing Special Tool (2 212 825) On Oil Pump Housing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Sprocket must be blocked with special tool 2 318 117 in order to release central bolt (2).
Attach special tool 2 318 117 to crankcase with screws (3).

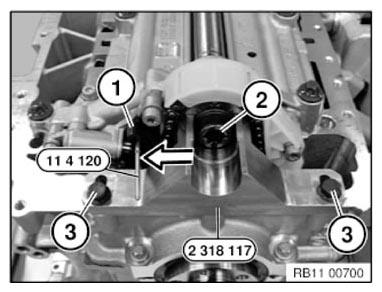

Fig 4: Attaching Special Tool (2 318 117) To Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Press back chain tensioner and fix with special tool 11 4 120 .

Installation note:

There are various central bolts of the oil pump/camshaft sprocket.

Loosen torx socket with T50 using special tool 11 4 420 .
Torx socket with T60 can be released using special tool 11 8 580 .

Release oil pump central bolt (2).

Tightening torque: 11 41 5AZ .

Unfasten screws (2).

Release screws (1).

Tightening torque: 11 41 3AZ .

Remove gear and chain module (2).

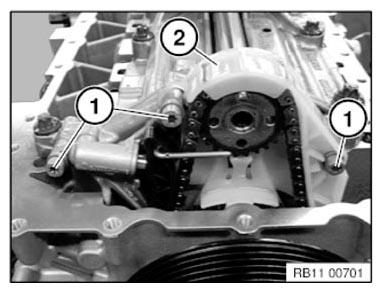

Fig 5: Gear And Chain Module Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe different screw lengths.

Release screws (1).

Tightening torque: 11 41 6AZ/2AZ .

Release screws, remove oil pump with counterbalance shaft.

Tightening torque: 11 41 2AZ .

Installation note:

Check spacer bushes for secure seating and damage; replace if necessary.

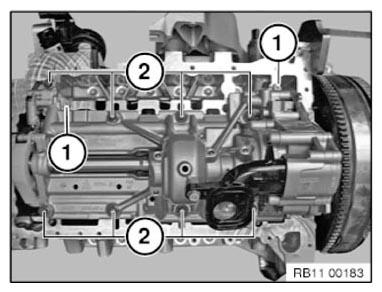

Fig 6: Oil Pump Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
