72 11 096 Removing and installing/replacing rear left or right lower strap
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR SEAT

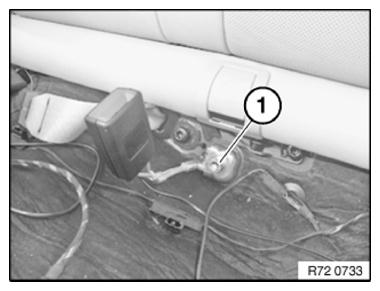

Release screw (1).
Tightening torque 72 11 22AZ .
If necessary, unlock and disconnect plug connection for acoustic seat belt warning.
Remove lower strap.
Installation note:
Lower strap fitting is coded to prevent incorrect assembly.
