52 24 005 Removing and installing/replacing rear seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left and right towards top.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

Make sure Isofix protective caps are correctly engaged.

Fig 1: Lifting Out Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

Unlock and disconnect plug connections (1) for backrest heater left and right.

Unlock plug connection (2) on left and right and disconnect.

Unclip cable clip from seat frame.

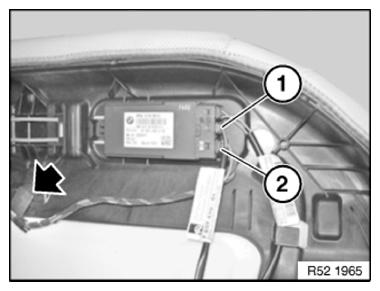

Fig 2: Locating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
