65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Installation:
- Remove REAR MID-RANGE SPEAKER .
Release screws.

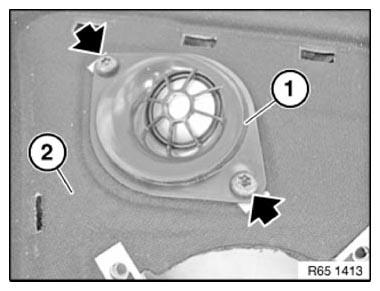

Remove treble speaker (1) from rear window shelf (2).
Feed out associated plug connection.
