65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Pry out speaker trim (1) 00 9 325 with special tool.

Fig 1: Prying Out Speaker Trim 00 9 325 With Special Tool

G06886423

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs on speaker trim (1) must not be damaged.

Fig 2: Identifying Retaining Lugs On Speaker Trim

G06886424

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

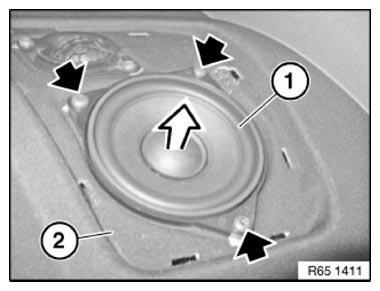

Remove mid-range speaker (1) in direction of arrow from storage shelf (2).

Fig 3: Removing Mid-Range Speaker From Storage Shelf

G09929610

Courtesy of BMW OF NORTH AMERICA, INC.

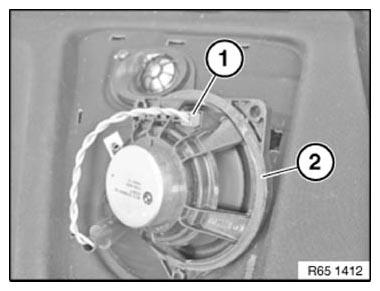

Disconnect plug connection (1).

Remove mid-range speaker (2).

Fig 4: Identifying Mid-Range Speaker And Plug Connection

G09929611
