65 13 057 Removing and installing/replacing speaker system (High End sound system, in dashboard trim panel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Necessary preliminary work:

Remove COVER ON SPEAKER SYSTEM .

NOTE: Picture for example purposes F12.

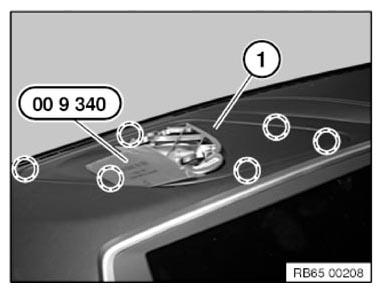

Use special tool 00 9 340 to unclip cover (1) at marked points.

Fig 1: Removing Cover On Speaker System Using Special Tool 00 9 340

G09929622

Courtesy of BMW OF NORTH AMERICA, INC.

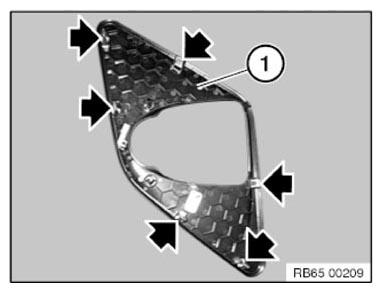

Clamps on cover (1) must not be damaged.

Replace clamps if necessary.

Fig 2: Identifying Clamps On Cover

G09929623

Courtesy of BMW OF NORTH AMERICA, INC.

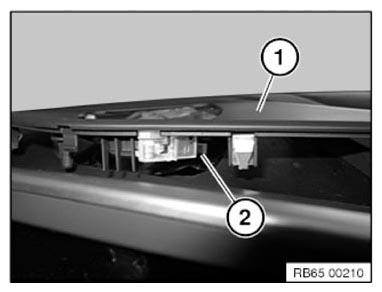

Disconnect plug connection (2).

Remove cover (1).

Fig 3: Identifying Cover Plug Connection

G09929624

Courtesy of BMW OF NORTH AMERICA, INC.

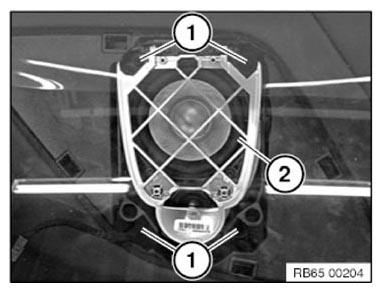

Release screws (1).

Remove speaker system (2) from dashboard.

Fig 4: Identifying Speaker System Screws

G09929625

Courtesy of BMW OF NORTH AMERICA, INC.

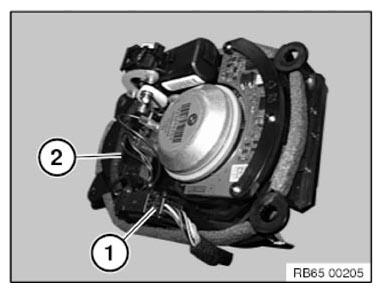

Unlock plug connection (1) and disconnect.

Remove speaker system (2).

Fig 5: Identifying Speaker System Plug Connection

G09929626

Courtesy of BMW OF NORTH AMERICA, INC.

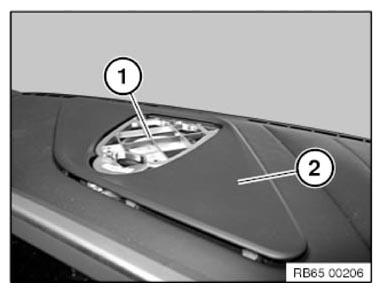

Installation note:

Speaker system (1) must be adjusted.

Observe the following notes for this:

Insertion of speaker system (1) in dashboard
Placement of cover (2), this precentres of speaker system
Removal of cover (2) and screw connection from the two front screw points
Renewed placement of cover (2) and if necessary subsequent centring of speaker system
Removal of cover (2) and screw connection from the two rear screw points
Renewed placement of cover (2)
If joint speaker system (1) not OK, then manual fine tuning of joint

Fig 6: Identifying Speaker System With Cover
Courtesy of BMW OF NORTH AMERICA, INC.
