65 13 052 Removing and installing/replacing cover on speaker system (High End sound system in dashboard trim panel)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

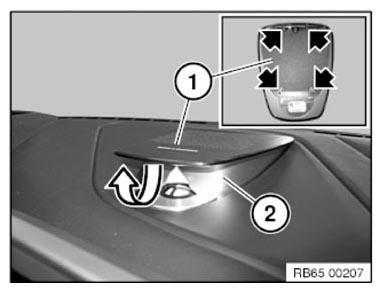

Picture for example purposes F12.
Move out speaker system (2) by switching on radio.
Cover (1) is clipped on speaker system at marked points.
Carefully unclip cover (1) upwards.
Installation note:
Speaker system (2) must be moved out to allow cover (1) to lock correctly.
