63 21 183 Removing and installing/replacing left or right rear light (on tailgate)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove TRIM PANEL FOR TAILGATE

Slacken nut (1).

Disconnect plug connection (2).

Installation note:

For special version Softclose:

Release screws (3) and slide drive for Softclose (4) slightly rearwards.

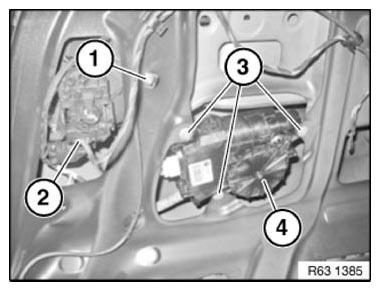

Fig 1: Identifying Plug Connection, Slacken Nut And Screws

G09929162

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift rear light (1) toward the rear and remove from rear lid (2) in direction of arrow.

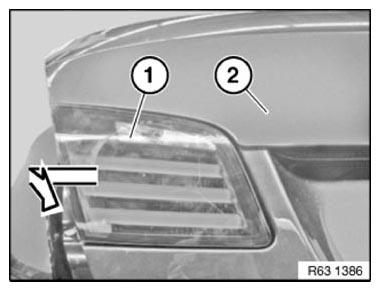

Fig 2: Removing Rear Lid

G09929163

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure bracket (1) is correctly seated.

Guides (2) of rear light (3) must not be damaged.

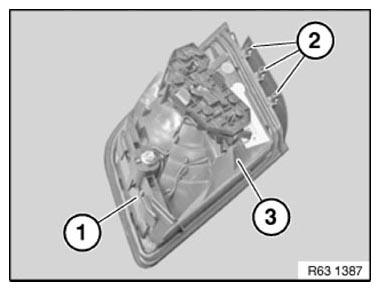

Fig 3: Identifying Rear Light, Guides And Bracket

G09929164

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .
