37 12 1090 Removing and installing rear left or right spring strut - Vehicles with standard suspension, except M5

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WHEEL
Remove backrest side section on rear seat backrest (F06 only)
Remove TRIM PANEL for roof pillar, rear left/right (F06 only)
Remove SPEAKER

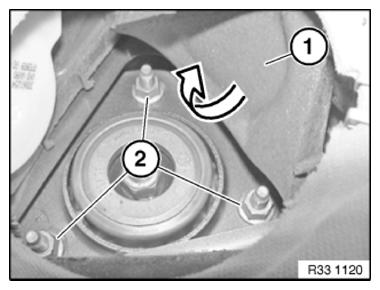

Fold sound insulation (1) upwards.

Unscrew nuts (2).

Tightening torque 33 52 1AZ .

Installation note:

Replace nuts.

Fig 1: Identifying Sound Insulation And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

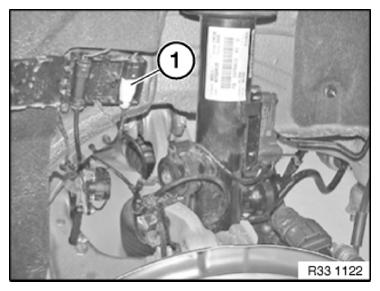

Unfasten plug connection (1) and disconnect.

Expose line up to the spring strut.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

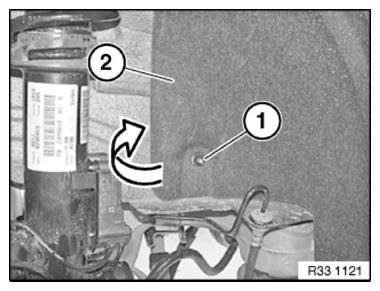

Slacken nut (1).

Partially fold up wheel arch panel (2).

Installation note:

Replace nut if necessary.

Fig 3: Identifying Wheel Arch Panel And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 33 52 3AZ .

Remove spring strut from wheel carrier.

Installation note:

Replace screw.

Fig 4: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

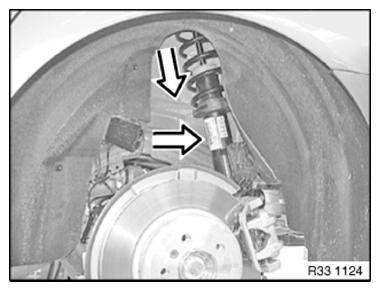

Press wheel carrier downwards.

Remove spring strut towards rear/downwards.

Fig 5: Removing Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
