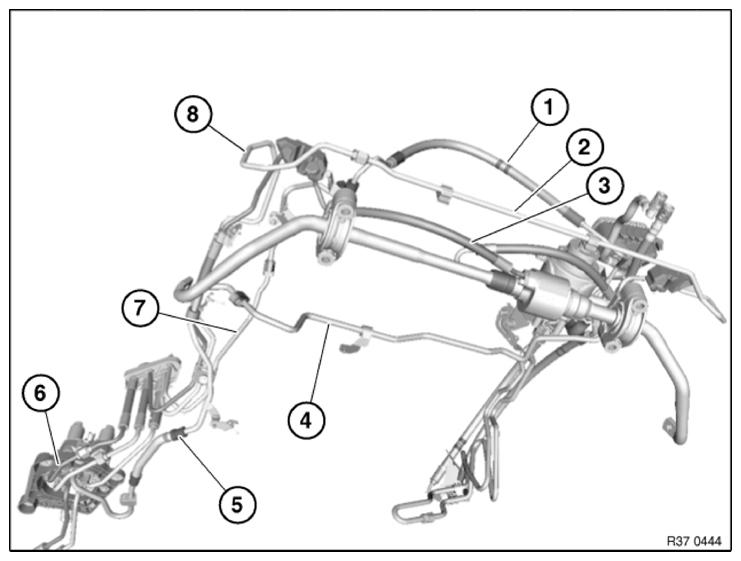

37 13... Overview of Dynamic Drive (ARS) pressure lines, front axle
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Designation |
|---|---|
| 1 | ARS expandable hose part 1 valve block VA1: See procedure for applicable engine:
|
| 2 | PRESSURE LINE , swivel motor VA1 |
| 3 | PRESSURE LINE , swivel motor VA2 |
| 4 | ARS RETURN LINE PART 2 |
| 5 | ARS RETURN LINE PART 1 |
| 7 | ARS EXPANDABLE HOSE PART 2 |
| 6 | VALVE BLOCK PRESSURE LINE short, front axle |
| 8 | VALVE BLOCK PRESSURE LINE , front axle 1 |
