52 14 209 Removing and installing carrier plate for rear monitor

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove REAR CABIN MONITOR

Release tacker in marked area from carrier plate (1).

Remove clamps (2) at top left and right.

Fig 1: Identifying Tacker In Marked Area From Carrier Plate

G09927254

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Remove carrier plate (2).

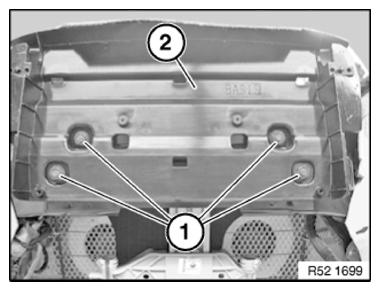

Fig 2: Identifying Carrier Plate And Nuts

G09927255

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mount head restraint to pretension backrest cover.

The seam of the backrest cover must not be wavy and must be flush with the backrest frame upper edge.

Align backrest cover centrally.

Tack backrest cover with pneumatic tacker front inside outwards to carrier plate (1).

7 Tacker on carrier plate at top.

4 Tacker on left and right in side area.

Bend new clamps closed with pliers 52 0 050 .

Backrest cover must not show any folds.
