52 17 041 Removing and installing inner cover on left or right front seat

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat . See 52 14 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 14 002 REMOVING AND INSTALLING FRONT SEAT, FRONT PASSENGER SIDE

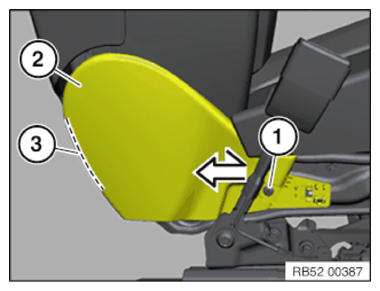

If necessary, detach cable from cover (2).

Drill out blind rivet (1).

IMPORTANT: Use drill of correct diameter.
Make sure that cover (2) and seat frame are not damaged.

Feed cover (2) out of guides (3) in direction of arrow.

Fig 1: Detaching Cable From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

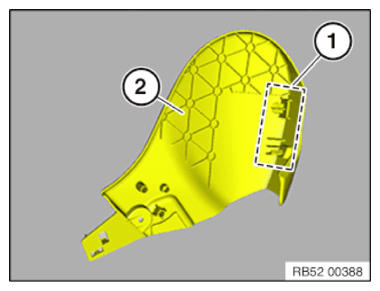

Guides (1) for cover (2) must be damaged or missing.

Fig 2: Identifying Cover And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
