52 17 202 Removing and installing/replacing lower rear panel on left or right front seat backrest (comfort)

Necessary preliminary tasks:

• Remove UPPER REAR PANEL ON FRONT SEAT BACKREST

Removal:

Release expanding rivets (1).

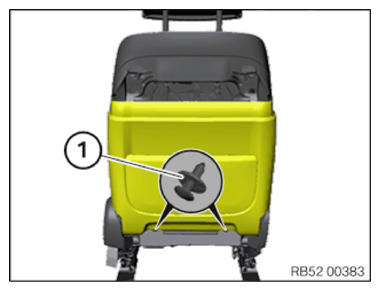

Fig 1: Identifying Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

1. Pull left rear panel outwards
2. Detach the lock mechanism of the left rear panel backwards
3. Pull right rear panel outwards
4. Detach the lock mechanism of the right rear panel backwards

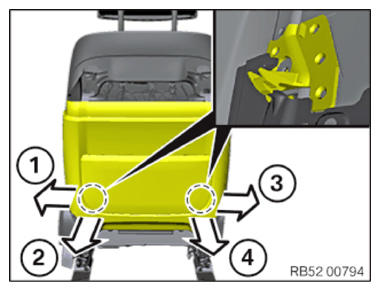

   Fig 2: Detaching Lock Mechanism Of Left Rear Panel Backwards

   Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rear panel (1) in area (2) downwards from guides (3).

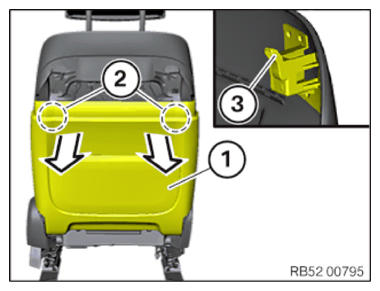

Fig 3: Pulling Out Rear Panel In Area Downwards From Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fig 4: Installing Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

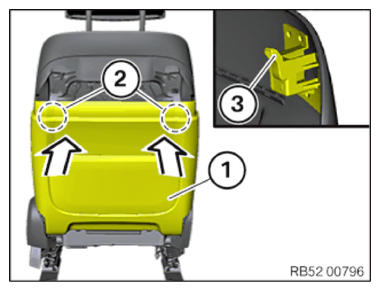

Insert rear panel (1) in area (2) upwards with guides (3).

Fig 5: Inserting Rear Panel In Area Upwards With Guides

Courtesy of BMW OF NORTH AMERICA, INC.

1. Pull right rear panel outwards
2. Press right rear wall right forward and hold
3. Pull left rear panel outwards
4. Press left rear panel forward, center rear panel

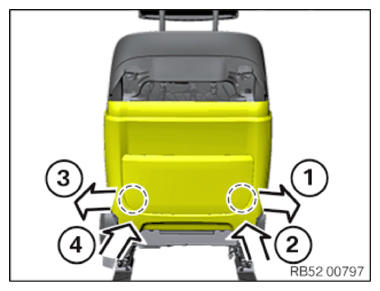

Fig 6: Pulling Left Rear Panel Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten the expanding rivet (1).
