52 17 200 Removing and installing/replacing top rear panel on left or right front seat backrest (comfort)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release upper part of rear panel (1) from clamps (2) and pull upwards out of the bottom guides.

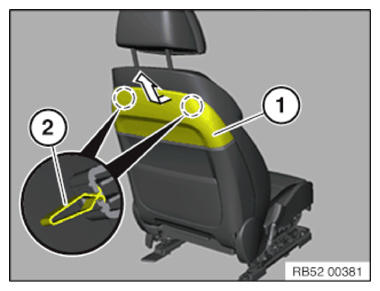

Fig 1: Releasing Upper Part Of Rear Panel From Clamps
G09928009Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) and clamps (2) on the rear panel (3) must not be damaged.

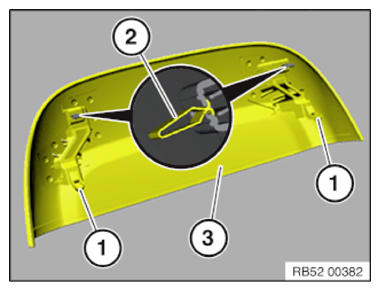

Fig 2: Identifying Guides And Clamps On Rear Panel
G09928010Courtesy of BMW OF NORTH AMERICA, INC.
