41 14 020 Replacing Front Left Wheel Arch (Non-Hybrid)

Note the special vehicle identification number procedure when replacing the front right wheel arch (order the new body part with the vehicle identification number, if necessary)!

These instructions are only applicable the first time the wheel arch is replaced! Repeated replacement is only permitted after consultation with and release by BMW.

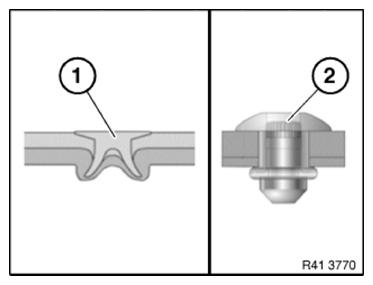

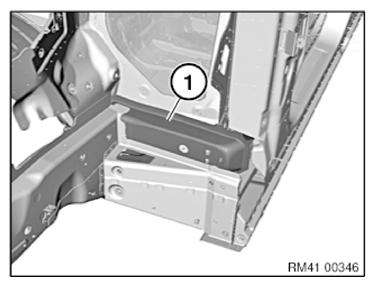

If the wheel arch has not yet been replaced, this can be recognized from the punch rivets (1) fitted at the factory.

If replacing the wheel arch, replace the punch rivets with blind rivets (2).

Fig 1: Identifying Punch And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Observe procedure of REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Strip down  . See 41 14 021 STRIPPING OPERATIONS - REPLACING FRONT LEFT WHEEL ARCH  or 41 14 030 STRIPPING OPERATIONS - REPLACING FRONT RIGHT WHEEL ARCH  vehicle.

Steel-aluminum composite construction is used on the vehicle. Observe specific PROCEDURE .

Spot-weld bonding is used on this vehicle.

Observe specific procedure  . See 41 00... BONDING ALUMINUM ON STEEL  or 41 00... OPENING RIVET CONNECTIONS .

Use only approved SPOT-WELDING EQUIPMENT  for repairs!

Place vehicle on straightening bench.

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):

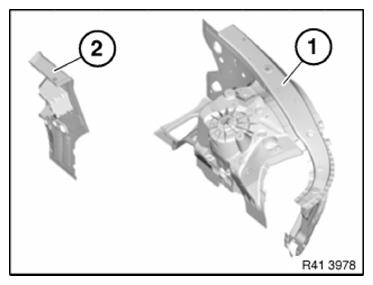

• (1) Wheel arch, front
• (2) Connection, side frame, rear
  Fig 2: Identifying Wheel Arch (Front), Connection, Side Frame, Rear

  Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES  are required:

Removing the wheel arch

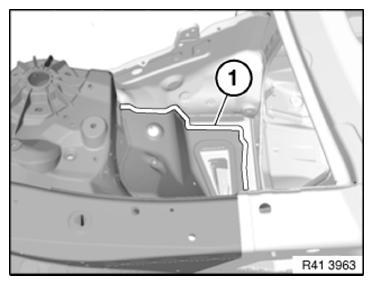

Open welded connections in area (1).

Fig 3: Identifying Engine Support Welded Connections In Area (Right Side)

Courtesy of BMW OF NORTH AMERICA, INC.

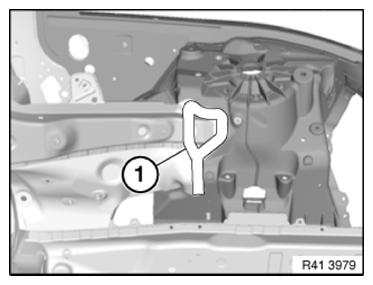

Open welded connections in area (1).

Fig 4: Identifying Engine Support Welded Connections In Area (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

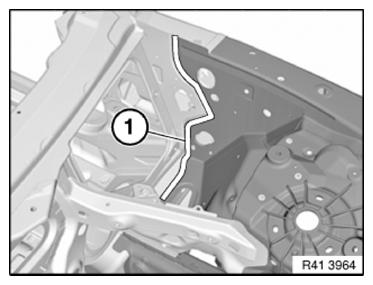

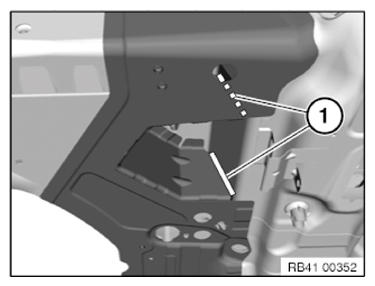

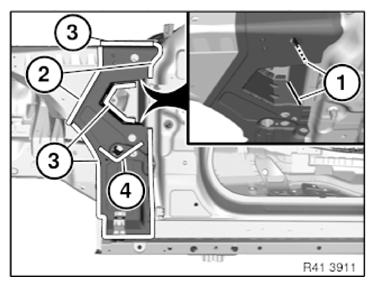

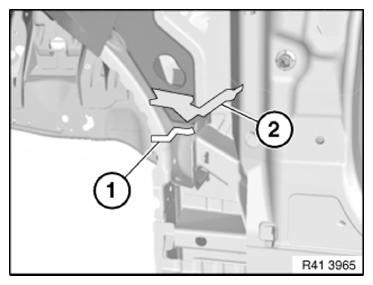

Roughly cut side frame connection along lines (1).

LOOSEN  spot-welded adhesive joints in areas (2).

Open welded connections in areas (3).

Release side frame connection from cavity sealing (4) and remove.

Open remaining welded connections in areas (1).

Fig 5: Identifying Side Frame Connection From Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

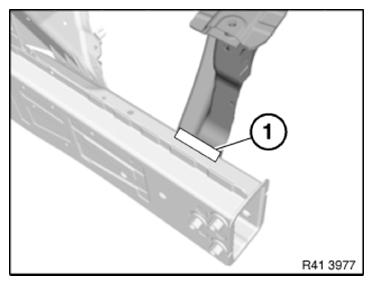

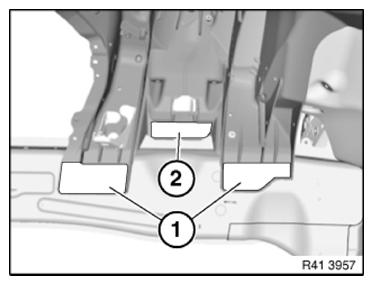

Open welded connections in area (1).

Remove cavity sealing (2).

Fig 6: Identifying Cavity Sealing And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

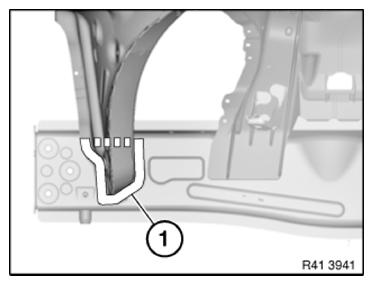

Drill out rivet connections in area (1).

Open bonded connection in area (1).

Fig 7: Identifying Drill Out Rivet Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 8: Identifying Engine Support Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections in areas (1) and (2).

Open bonded connections in areas (1) and (2).

Remove the wheel arch.

Fig 9: Identifying Drill Out Rivet Connections In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Adjust new parts to fit with alignment bracket or universal mount and secure.

TRANSFER THE HOLE PATTERN  in the areas (1) from the engine support to the wheel arch.

Transfer Ø 6.8 mm riveting holes from the engine support to the wheel arch in the area (2).

Fig 10: Identifying Drill Out Rivet Connections In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Identifying Rivet Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Additional rivet positions are required for strength reasons.

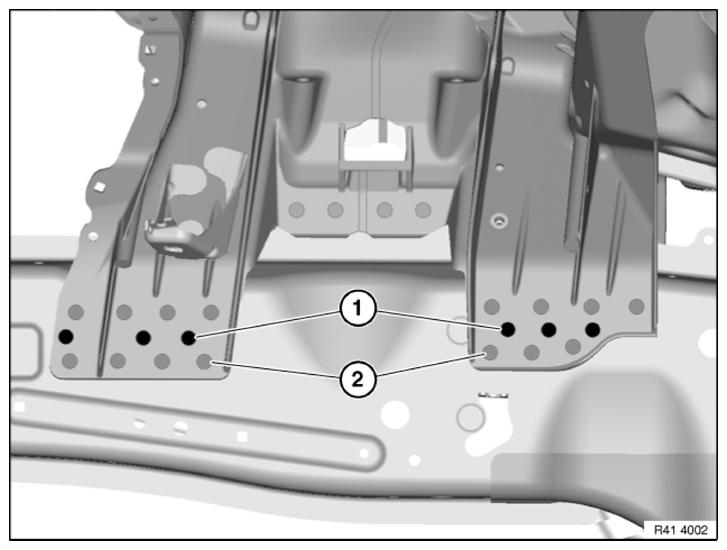

1. = Additional rivet positions (black, number 6)
2. = Previous rivet positions (grey, number 15)

Drill additional riveting holes (1) (Ø 6.8 mm) according to the schematic diagram.

Transfer the riveting holes Ø 6, 8 mm from the partition wall of the units compartment to the spring support in this area (2).

Fig 12: Identifying Drill Out Rivet Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the wheel arch

Clean bonding surfaces with cleaning agent R1.

Apply adhesive K1 to bonding surfaces.

Install new parts using an alignment bracket or universal mount.

Using blind rivets, rivet new parts in the areas where the rivets are fitted with adhesive N2.

Apply sealant to CAVITY SEALING  for the carrier support of the wheel arch.

Weld new parts identically to the series in the other gap areas.

MAG-weld new part in area (1).

To do so, apply 2 fillet welds at distance of approx. 20 mm. Length of fillet welds approx. 15 mm.

Fig 13: Identifying MAG-Weld Part Area

Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in areas (1).

To do so, apply 10 mm long fillet welds at spacing of 15 mm.

Fig 14: Identifying MAG-Weld Part Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Identifying Bulkhead Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.
