41 63 003 Replace Cover Bowl

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

Remove FLAP FOR FUEL FILLER NECK

NOTE: Carry over schematic diagram to the relevant vehicle type.

IMPORTANT: Deformation of the sheet metal flanges in the side panel and the wheel arch results in permanent vehicle leakage. Carry out removal/installation with great care.

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):

(1) Cover bowl

Fig 1: Identifying Cover Bowl
Courtesy of BMW OF NORTH AMERICA, INC.

Release rubber collar (1) from cover bowl (2) by pressing inward.

NOTE: Rubber collar (1) remains attached to vehicle.

Fig 2: Identifying Rubber Collar From Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out retaining strap (1).

Pierce markings (2) with a small screwdriver.

Fig 3: Identifying Retaining Strap And Pierce Markings

Courtesy of BMW OF NORTH AMERICA, INC.

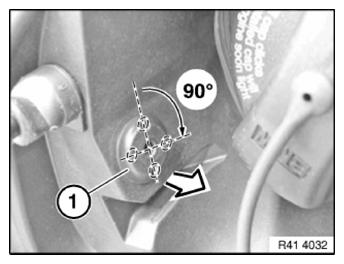

Turn cover (1) through approx. 90° and lever out in direction of arrow.

Fig 4: Turning Cover

Courtesy of BMW OF NORTH AMERICA, INC.

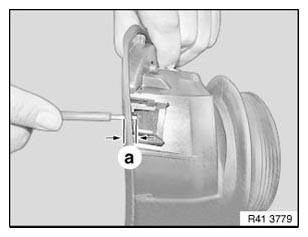

NOTE: For purposes of clarity, picture shows cover bowl removed.

Insert screwdriver to specified measurement a and unlock cover bowl catch.

Dimension a = approx. 10 mm

Fig 5: Removing Cover Bowl Catch Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Keep cover bowl tensioned with pliers (1).

Unlock catches individually with screwdriver (2).

Unlock catches in following order:

Top left
Bottom left
Top right
Bottom right

Move screwdriver in opposite direction at both lower catches.

Fig 6: Removing Cover Bowl With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close hinge arm (1).

IMPORTANT: Do not damage sheet metal flange of side wall.

Carefully twist out cover bowl (2) at first at rear in direction of arrow from side panel and remove.

Fig 7: Twisting Out Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the cover bowl:

Remove rubber collar (1) from new part.

NOTE: When replacing rubber collar: Remove WHEEL ARCH COVER .

Fig 8: Identifying Rubber Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Locks (1) on left/right of cover (2) must not be damaged.

Fig 9: Identifying Locks On Left/Right Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Check protective cap (3) for correct seating.

Catches (1) on ejector (2) must not be damaged. (Watertightness!)

Fig 10: Identifying Protective Cap, Catches On Ejector

Courtesy of BMW OF NORTH AMERICA, INC.

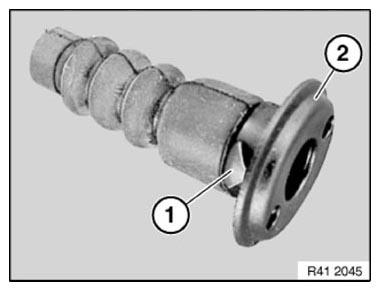

Fit approx. 0.5 m long cable (1) in groove on rubber collar (2).

Fig 11: Identifying Long Cable In Groove On Rubber Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover bowl (1).

Thread ends of cable (2) outwards.

Cover bowl must snap into place 4 times.

Align bottom rubber cup (3) with recess (arrow).

Pull rubber collar (3) over the cover bowl by pulling the ends of cables (2).

Fig 12: Pulling Rubber Collar Over Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly pull out cable ends (2).

Press rubber cup (1) into groove with special tool 00 9 321 .

Fig 13: Pressing Rubber Cup Into Groove With Special Tool 00 9 321

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully check cover bowl (2) in area of latch mechanisms for proper seating.

There must be no discernible gap between the sealing lip of the cover bowl and the side wall in the area.

Make sure rubber collar (1) is correctly seated (watertightness).

Fig 14: Identifying Rubber Collar From Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.
