54 12 336 Removing and installing/renewing guide element pair for glass slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GLASS SLIDE/TILT SUNROOF PANEL .
Remove ROOF SWITCH CLUSTER .

NOTE: Initiate manual movements of guide element via the drives using an offset hexagon socket key.

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

Removal:

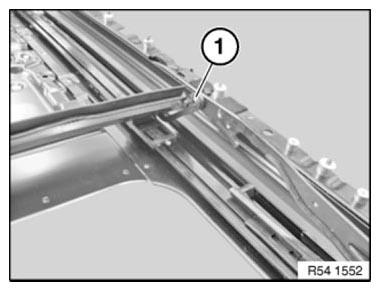

Release screws (1) on left and right.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

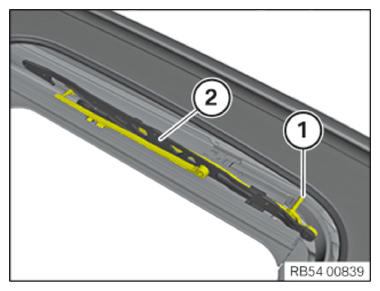

Move gate (1) back as shown.

NOTE: Make sure that water channel is pushed back as well.

If necessary, secure the water channel with a cord so that it can be pulled out again later.

Pry out stop (2) toward outside.

Fig 2: Moving Gate Back

Courtesy of BMW OF NORTH AMERICA, INC.

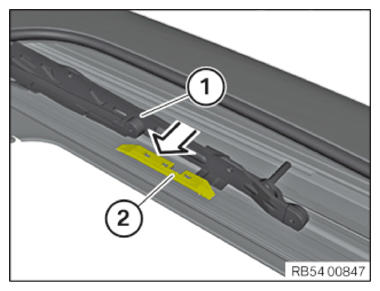

Move gate (1) to recess (2).

Fig 3: Moving Gate To Recess

Courtesy of BMW OF NORTH AMERICA, INC.

Hold onto lever (1) firmly.

Move gate (2) until it is in vent position.

Fig 4: Identifying Gate In Vent Position And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

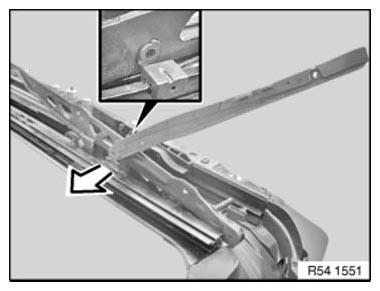

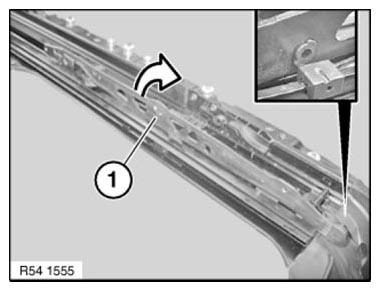

Lever control lever (1) out of guide rail and turn.

Fig 5: Removing Control Lever Out Of Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Remove control lever from guide element.

Fig 6: Removing Control Lever From Guide Element

Courtesy of BMW OF NORTH AMERICA, INC.

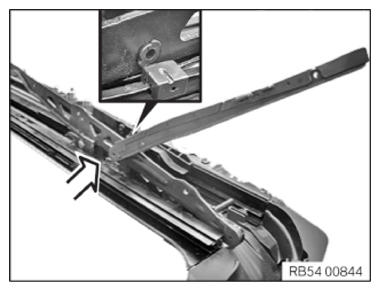

Fig 7: Moving Drive Carriage Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

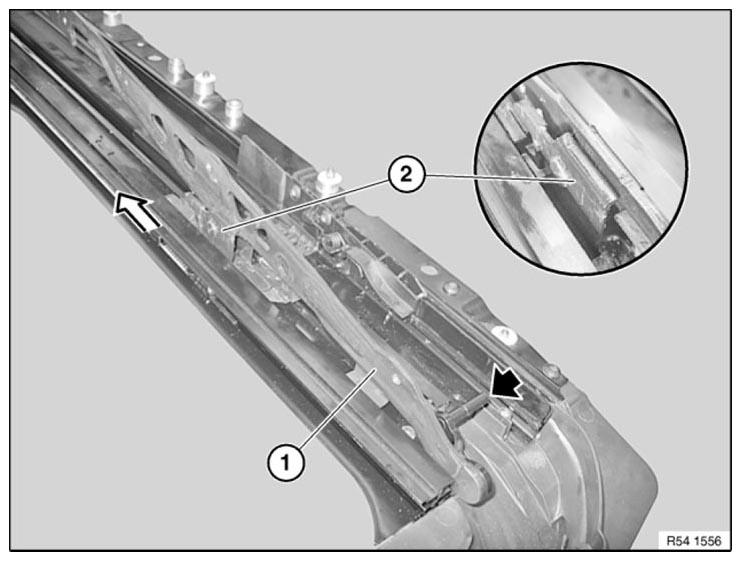

Grip lid gate (1) at bolt (arrow).

Move drive carriage (2) towards rear until lid gate (1) feeds out of drive carriage (2).

Reposition lid gate (1) and remove from gate.

Fig 8: Moving Drive Carriage Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach lid gate (1) to gate and reposition toward back.

Fig 9: Attaching Lid Gate

Courtesy of BMW OF NORTH AMERICA, INC.

Move drive carriage forward while feeding lever (1) into guide (2).

Fig 10: Identifying Drive Carriage Lever Into Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Moving Drive Carriage Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Grip lid gate (1) at bolt (arrow) and move drive carriage (2) to vent position.

Attach control lever to gate.

Fig 12: Attaching Control Lever To Gate

Courtesy of BMW OF NORTH AMERICA, INC.

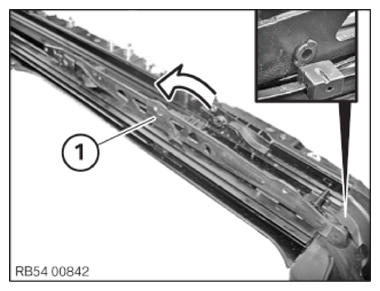

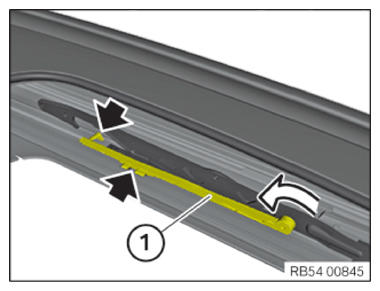

Fold control lever (1) towards rear and insert in guide rail.

Fig 13: Folding Control Lever Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

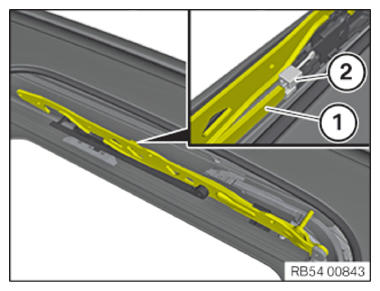

NOTE: Spacer (1) of control lever must lie in guide rail.

Fig 14: Identifying Spacer Of Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

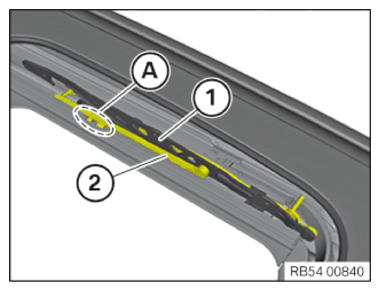

Move gate (1) towards rear.

While doing so, press lever (2) down so

that it moves into the rail correctly in area (A).

Fig 15: Moving Gate Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Move gate (1) towards rear until recess for stop (2) is exposed.

Insert stop (2).

Fig 16: Inserting Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Move gate to vent position.

Pull out water channel and tighten screw (1) on left and right.

Parts: Replace screw (1).

Tightening torque 54 12 04AZ .

Fig 17: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install GLASS SLIDE/TILT SUNROOF PANEL .
