54 12 195 Removing and installing/renewing left or right wind deflector bearing

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WIND DEFLECTOR .

Unlock holder (1) (arrows) and push back up to recess.

Remove holder (1) upwards.

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure leaf spring (1) is correctly positioned in guide.

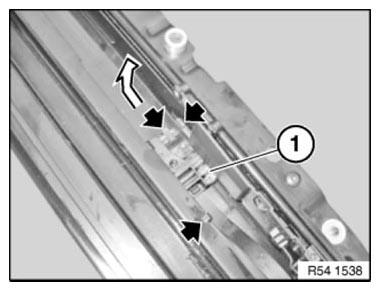

Fig 2: Identifying Leaf Spring Position

Courtesy of BMW OF NORTH AMERICA, INC.
