22 11 110 Replacing left engine support arm (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Compliance with the following points is mandatory before beginning work:

Observe SAFETY INFORMATION for handling hybrid cars

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION
Remove rear UNDERBODY PROTECTION
Remove left COVER
Remove rear left CHARGE AIR DUCT

Release screws (3).

Place heat exchanger (4) to one side.

NOTE: Do not release cooling and transmission line.

Fig 1: Identifying Heat Exchanger Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

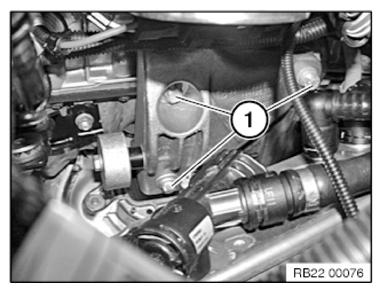

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
