22 11 100 Replacing right engine support arm (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Compliance with the following points is mandatory before beginning work:

Observe SAFETY INFORMATION for handling hybrid cars.

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION
Remove rear UNDERBODY PROTECTION
Remove right COVER

Release screws (1).

Tightening torque 22 11 3AZ .

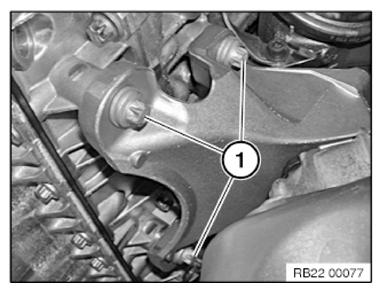

Fig 1: Identifying Right Engine Support Arm (N55) Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from engine support arm at front engine compartment.

Remove engine support arm.

Tightening torque 22 11 3AZ .

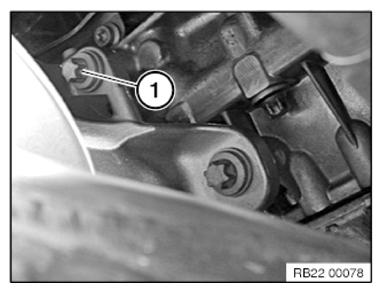

Fig 2: Identifying Screw From Engine Support Arm (Front Engine Compartment)

Courtesy of BMW OF NORTH AMERICA, INC.
