28 40 020 Removing and installing or replacing clutch support (GS7D36SG)

WARNING: This page is about a different car, the 2016 BMW M5, 2015 BMW M5, 2014 BMW M5, and 2013 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved TRANSMISSION OIL .
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TWIN-CLUTCH GEARBOX .
Remove CLUTCH .

Remove OIL PUMP (1).

Unfasten screws (2).

There is another screw of the clutch support located under the oil pump drive wheel.

Tightening torque: 11 Nm

Remove clutch support (3).

Installation note:

Replace screws and seal.

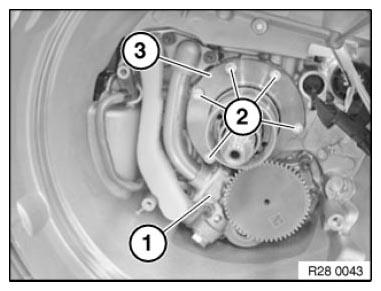

Fig 1: Identifying Clutch Support, Oil Pump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before installing clutch support:
Make sure without fail that seal (1) is installed in correct position and piston rings are correctly fitted on drive shaft.

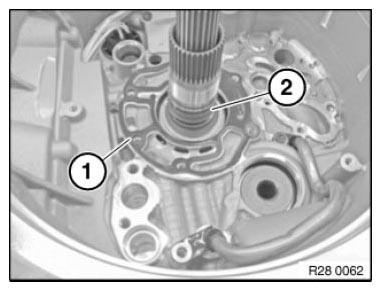

Fig 2: Identifying Clutch Support Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of the clutch support:

Secure clutch support screw connections in diagonal sequence.

It is mandatory to comply with the specified order of screw connections 1-6.

Tighten all screws to 2 Nm.
Release all screws again by a turn of approx. 180°.
Then tighten fully.

Tightening torque: 11 Nm

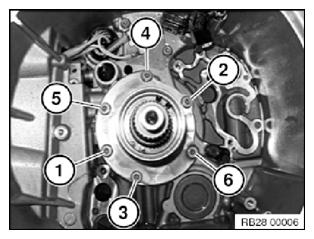

Fig 3: Clutch Support Bolts Tightening/Loosening Sequence
