28 00 101 Installing replacement transmission (GS7D36SG)

WARNING: This page is about a different car, the 2016 BMW M5, 2015 BMW M5, 2014 BMW M5, and 2013 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Drain transmission oil at oil drain plug.

Tightening torque: 8 Nm

IMPORTANT: After completion of work, program transmission control unit.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations

IMPORTANT:

Before installing exchange transmission, always flush TRANSMISSION OIL COOLER TOGETHER WITH LINES .
After completion of repair work, check TRANSMISSION OIL LEVEL .

Replacement transmission is supplied filled with transmission fluid.

Use only the approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

Necessary preliminary tasks:

Remove TWIN-CLUTCH GEARBOX .

IMPORTANT: Make sure the acoustic insert (2) is fitted correctly when removing and installing the transmission.
Installing the acoustic insert (2) for the installation of a replacement transmission is absolutely required.

Fig 1: Identifying Acoustic Insert

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Release screws.

Remove and convert transmission bearing block (1).

Modify all transportation retainers.

Convert all cable clips.

Convert all seal plugs.

Convert protective cap on input shaft.

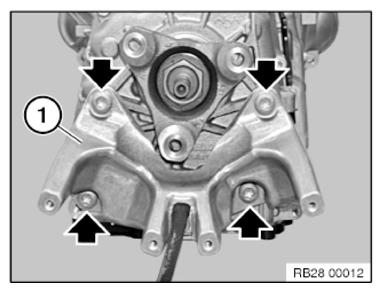

Fig 2: Identifying Transmission Bearing Block And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission identification:

On type plate

Fig 3: Identifying Transmission
Courtesy of BMW OF NORTH AMERICA, INC.
