24 00 033 Removing And Installing Automatic Transmission (GA8HP45Z) N20 AWD

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal .
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Clamp off BATTERY .
Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING/REPLACING UNDERBODY PROTECTION (FRONT) or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove EXHAUST SYSTEM .
Remove heat shields.
Remove PROPELLER SHAFT .

Release screw (1).

Remove holder (2).

Fig 1: Automatic Transmission Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 24 11 6AZ .

Remove the protective plate (2).

Fig 2: Protective Plate And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Tightening torque: 17 22 1AZ .

Installation note:

Replace sealing rings.

Fig 3: Transmission Oil Cooler Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque: 18 20 1AZ .

Unfasten screws (2).

Tightening torque: 18 20 2AZ .

Remove bracket (3) and catalytic converter (5).

Unscrew nuts (4).

Tightening torque: 18 20 1AZ .

Remove rubber mounts for catalytic converter.

Fig 4: Catalytic Converter, Bracket, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

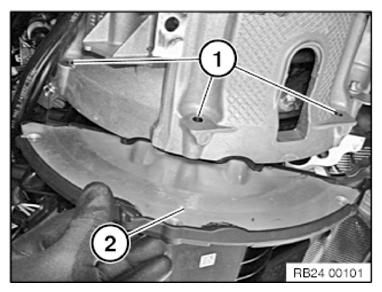

Release screws (1).

Tightening torque: 24 00 3AZ .

Remove cover plate (2) downwards.

Remove cover.

Fig 5: Cover Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

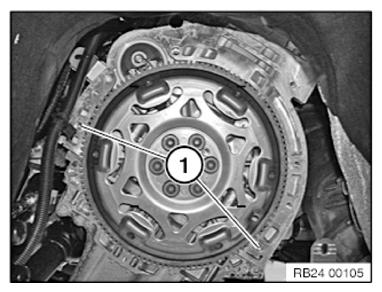

Crank engine at vibration damper in direction of rotation until screw (1) is visible in recess.

Undo all 6 bolts on torque converter.

Tightening torque: 24 40 1AZ .

IMPORTANT: Replace all 6 bolts on torque converter.

Fig 6: Torque Converter Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew knurled screw (1) from special tool 2 222 741 (do not remove completely) before inserting in the recess of the transmission housing.

Insert special tool 2 222 741 and shaped element (3) in the recess.

Slightly tighten knurled nut (2).

Screw in knurled screw (1) fully.

Locating pin (4) must be located between converter and engine.

Move special tool 2 222 741 in the recess until the locating pin (4) rests against the converter.

Fig 7: Inserting Special Tool (2 222 741)

Courtesy of BMW OF NORTH AMERICA, INC.

Use knurled nut (2) to fix special tool 2 222 741 and converter in position.

Unlock and disconnect connector (1) by turning.
Do not touch pins.
Release cable from brackets.
Insert special tool 24 2 390 in sealing cup.

Tasks are described in Gearbox holder.

NOTES ON MECHATRONICS .

IMPORTANT: Read and comply with important note.

Fig 8: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

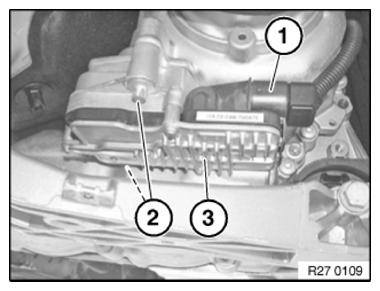

Unplug connector (1) from transfer box control unit (longitudinal torque module) (3).

Fig 9: Transfer Box Control Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left and right of axle.

Remove cover plate (2) on left and right of axle.

Remove bolt (3) on left and right of axle.

Tightening torque: 31 10 1AZ .

Fig 10: Axle Cover Plate, Screw And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on special tool 11 8 910 .

Fig 11: Special Tool (11 8 910)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust distance (1) between cross bar and facing using nuts (2).

Nuts (2) must be screwed down in opposite direction after distance has been adjusted.

IMPORTANT: Distance: 53 mm

Fig 12: Cross Bar And Nuts Distance

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in TRANSMISSION BRACKET .

Fig 13: Supporting Transmission Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 22 32 3AZ .

Fig 14: Transmission Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

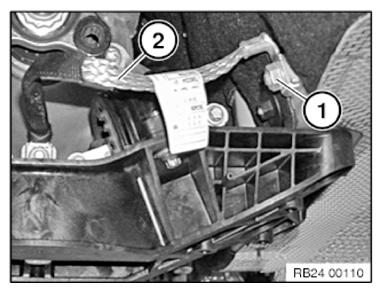

Release nut (1) from ground strap (2).

Tightening torque: 24 11 7AZ .

Fig 15: Ground Strap And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque: 24 00 1AZ .

Fig 16: Transmission Housing Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that fitting sleeves (1) are correctly seated.

Replace damaged fitting sleeves.

Fig 17: Automatic Transmission Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Twist torque converter until bore hole in torque converter is flush with bore hole of flywheel.

Flange automatic transmission to engine.
