24 40 015 Removing And Installing/Replacing Torque Converter (GA8HP70Z) (N57)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove automatic transmission . See 24 00 034 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP70Z) N57 or 24 00 034 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP70Z) N57 AWD .

Fit special tool 24 1 440 in torque converter.

Remove torque converter.

NOTE: When torque converter is removed, transmission oil flows out.
Place torque converter vertically.

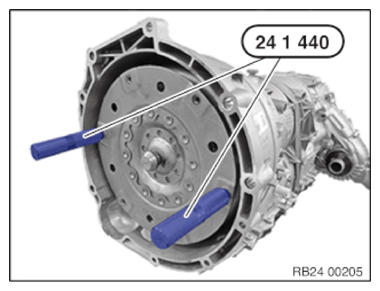

Fig 1: Special Tool (24 1 440)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing, do not damage radial shaft seal and bearing.

If the torque converter is not correctly installed, the driver of the pump impeller may be damaged when the transmission is flanged to the engine.

Installation note:

Determine distance between contact surface (1) and outer edge (2) of bore hole in torque converter with special tool 00 2 550 .

O-ring on drive shaft, must be replaced when exchanging the torque converter.

Push torque converter through radial shaft seal onto transmission shaft to the limit position.

Fig 2: Checking Distance Between Contact Surface And Outer Edge Of Torque Converter Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Press torque converter by hand into converter housing and turn in the process. Converter hub recess must snap into place in driver of pump impeller. Torque converter must be felt to slip inwards.

NOTE: The measured value must be ≥ 15 mm!
