24 00 034 Removing And Installing Automatic Transmission (GA8HP70Z) N57

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal .
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Disconnect the battery . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD or 61 20... INFORMATION ON AGM BATTERY .
Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING/REPLACING UNDERBODY PROTECTION (FRONT) or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove complete exhaust system.
Remove starter motor.
Remove PROPELLER SHAFT .
Note:
Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!
Support engine with jack when removing gearbox.

Unfasten ground strap (1).

Remove retaining plates (2).

Fig 1: Ground Strap And Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Disconnect cable (1).

Installation note:

Release screw (2).
Bring release lever (3) into contact with selector shaft by pressing slightly. Distance B=0 mm.
Adjust cable by means of holder until distance A ≥ 1 mm is obtained.
Tighten screw (2).

Fig 2: Cable, Release Lever And Screw
Courtesy of BMW OF NORTH AMERICA, INC.

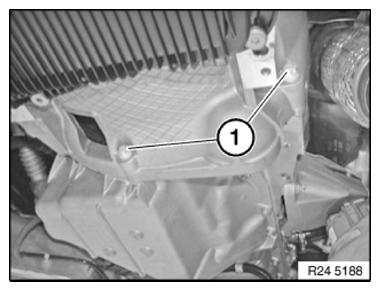

Release screws (1).

Tightening torque: 24 00 1AZ .

Fig 3: Automatic Transmission Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

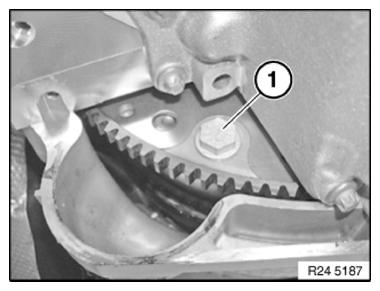

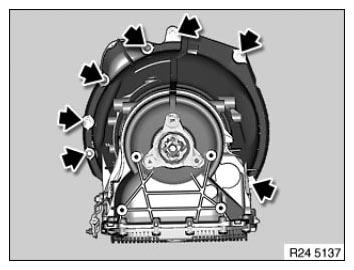

Crank engine with special tool 11 6 480 at the vibration damper in direction of rotation until screw (1) is visible in the recess.

Release all 6 bolts of torque converter with special tool 24 1 110 .

Tightening torque: 24 40 1AZ .

Fig 4: Torque Converter Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool (1) 24 4 161 (A) with shaped element (2) 24 4 166 as pictured.

Fig 5: Special Tool (24 4 161)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 4 160 into recess of transmission housing and clamp gently with screw (1).

Raise by turning screw (2) and clamp down.

Tighten screw (1).

Fig 6: Inserting Special Tool (24 4 160) Into Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

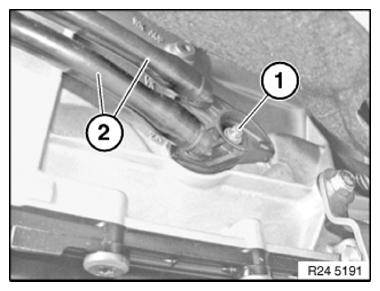

Release screw (1).

Release holder with transmission fluid lines.

Fig 7: Transmission Fluid Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

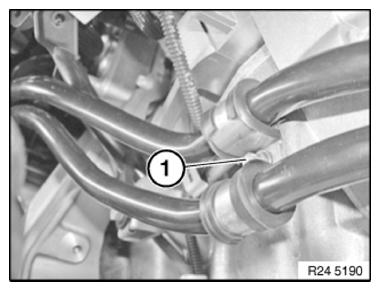

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Installation note:

Replace sealing rings.

Fig 8: Transmission Oil Cooler Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left and right of axle.

Remove cover plate (2) on left and right of axle.

Remove bolt (3) on left and right of axle.

Tightening torque: 31 10 1AZ .

Fig 9: Axle Cover Plate, Screw And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on special tool 11 8 910 .

Fig 10: Special Tool (11 8 910)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust distance (1) between cross bar and facing using nuts (2).

Nuts (2) must be screwed down in opposite direction after distance has been adjusted.

IMPORTANT: Distance: 37 mm

Fig 11: Cross Bar And Nuts Distance

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Repair work is described in GEARBOX HOLDER .

After completion of work, check transmission fluid level.

Fig 12: Supporting Transmission Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

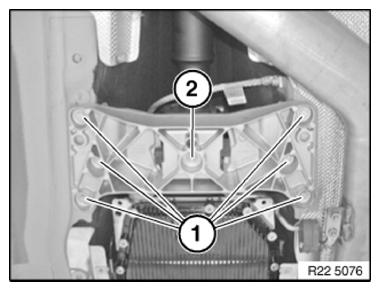

Release screws (1) and nuts (2).

Remove transmission cross member.

Tightening torque: 22 32 3/4AZ .

Fig 13: Transmission Cross Member Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) by turning and disconnect.
Do not touch pins.
Release cable from brackets.
Insert special tool 24 2 390 in sealing sleeve.

Repair work is described in

NOTES ON MECHATRONICS .

IMPORTANT: Read and comply with important note.

Fig 14: Turning Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts and remove transmission.

Tightening torque: 24 00 1AZ .

Installation note:

Screws have different lengths.

Note installation position.

Fig 15: Transmission Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore hole in drive plate disc must be accessible from recess on oil sump.

Check that fitting sleeves (1) are correctly seated.

Replace damaged fitting sleeves.

Fig 16: Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

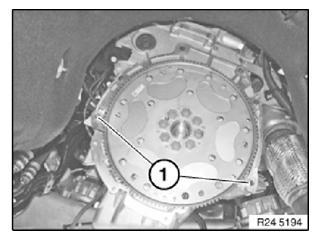

Rotate torque converter until bore hole in torque converter is flush with bore hole in drive plate.

Flange automatic transmission to engine.
