24 34 900 Removing And Installing Oil Pump In Automatic Transmission (GA8P70H) N55_Hybrid

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

NOTE: After completing repair work:

Load specific data version with ISTA.

IMPORTANT: After completion of repair work, CHECK TRANSMISSION OIL LEVEL .
Use only approved transmission oil .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST DAMAGE FROM ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Remove TRANSMISSION OIL SUMP .

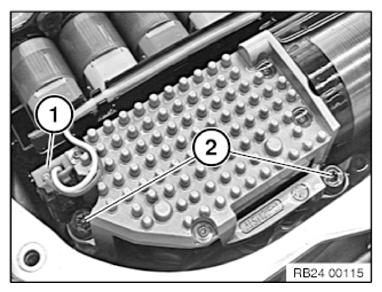

Disconnect connector (1).

Unfasten screws (2).

Tightening torque: 24 30 1AZ .

Fig 1: Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

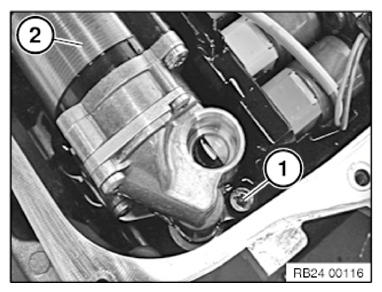

Release screw (1).

Remove oil pump (2) from housing.

Tightening torque: 24 30 1AZ .

Fig 2: Oil Pump And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

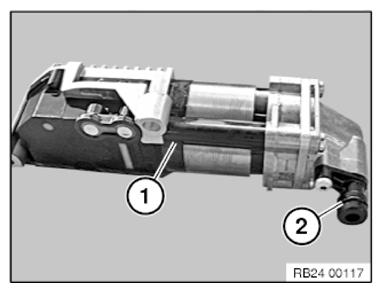

NOTE: When reinstalling oil pump (1), sealing ring (2) must be renewed.

Fig 3: Oil Pump And Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
