26 11 000 Removing and installing complete propeller shaft (inserted - flexible disc at rear) (N20)

Special tools required:

• 00 9 120
• 00 9 130
• 33 5 070
• 33 0 080

The propeller shaft may only  be released at the sunk nut at the rear.

The sunk nut must be opened against direction of travel in clockwise direction  .

Replacement of the sunk nut on the rear axle differential is mandatory!

The sunk nut already has a screw locking.

After the propeller shaft has been screwed into the rear axle final drive (sunk nut), a hardening time of at least 2 hours  is absolutely necessary.

The hardening time may be extended at lower temperatures!

Failure to comply with these instructions may cause serious damage!

Necessary preliminary tasks:

• Remove rear underbody protection.
• Remove COMPLETE EXHAUST SYSTEM .
• Remove heat shields.

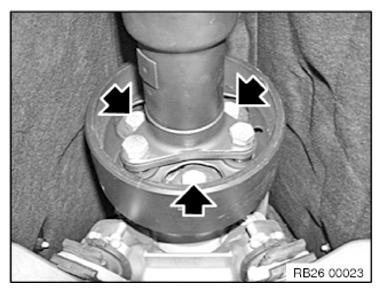

Fig 1: Identifying Flexible Disc Connection And Bolt Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Installation note:

• Replace ZNS bolts and self-locking nuts.
• Grip mounting bolts of flexible disc at nuts and tighten down by way of bolts.
  Fig 2: Locating ZNS Bolts

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check centering mount.

If necessary, replace damaged CENTER BEARING .

Grease centering mount.

• Grease: refer to OPERATING FLUIDS .
  Fig 3: Locating Front Centering Bearing

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten down screws/bolts to specified torque.

Secure angle of rotation special tool 00 9 120 with magnets 00 9 130 to vehicle underbody and screw down further according to angle of rotation.

Tightening torque 26 11 1AZ .

Fig 4: Identifying Special Tools (00 9 120) (00 9 130)

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1)

Tightening torque 26 11 5AZ .

Using a suitable tool (2), secure output shaft at center universal joint against turning.

Remove screws of center mount fully only after opening insert nut.

Fig 5: Securing Propeller Shaft Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The sunk nut must be opened against direction of travel in clockwise direction  .

Fig 6: Releasing Nut Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

If an attempt is made to open the sunk nut in direction of travel in clockwise direction, the sunk nut is automatically screwed in further and the insert collar of the 12-edge flange nut is severely damaged.
If the insert collar of the flange nut was damaged, the propeller shaft can no longer  be secured using a new sunk nut and the rear axle differential must be replaced.

Release insert nut against direction of travel in clockwise direction  with special tool 33 5 070 and 33 0 080 .

Tightening torque 26 11 6AZ .

Remove retaining clip (1) and gasket (2).

Installation note:

Retaining clip and gasket must be replaced.

Fig 7: Identifying Retaining Clip And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insert nut (1).

Installation note:

Insert nut must be replaced.

The sunk nut is equipped with a screw locking.

Prior to the first journey, a minimum hardening time of 2 hours  must be complied with.

Failure to comply with these instructions may cause serious damage!

Fig 8: Identifying Propeller Shaft Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing propeller shaft:

Clean insert collar (1) on flange nut and gearing on bevel pinion (2).

Fill insert collar (1) with grease.

Grease: refer to OPERATING FLUIDS .

Fig 9: Identifying Collar And Bevel Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread (1) of joint hub to remove adhesive residues.

Clean hub teeth (2), then coat with grease.

Grease: refer to OPERATING FLUIDS .

Fig 10: Identifying Hub Teeth And Thread

Courtesy of BMW OF NORTH AMERICA, INC.

Place flange nut (1) with gasket in insert collar of flange nut.

Install retaining clip (2).

Fig 11: Identifying Flange Nut And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Sliding Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
